Rethinking the Vent: A Fresh Look at Notebook Cooling AirflowBy Mark MacDonald, Thermal Systems Lead

Nobody likes vents on the bottom of their notebook. Many people find them ugly, they’re easily blocked if you put your notebook on your lap (and soon your fan is screaming at you!), and they ingest dust that can clog your notebook; I’ve even had them mess up my desk by trying to suck up loose pieces of paper.

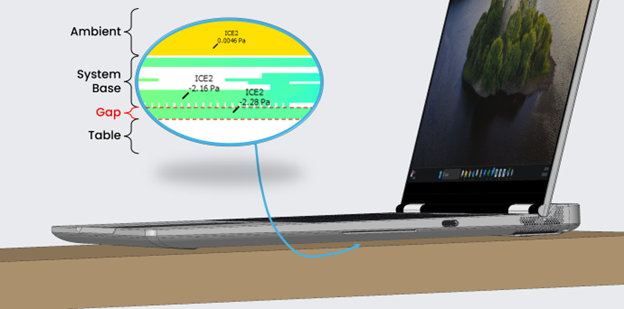

What most people do not appreciate is that they are also not the best way to get cooling air into a notebook system. Not only are they easily blocked, but even in the ideal usage (placed flat on a rigid table surface), using a bottom inlet vent adds significant air flow impedance compared to other inlet strategies. In a typical thin-and-light notebook design, the resistance created as the air squeezes into the gap between the table and the notebook can easily amount to 2-4 Pa of pressure loss.

This is a significant loss for any notebook thermal design, but especially so for one cooled with an ionic air mover like Ventiva’s thermal management subsystem. Ionic air movers are silent and effective, but they generate significantly less pressure head than traditional noisy blowers. Ideal operating points for these air movers are on the order of 5 Pa (for a flow rate of ~0.75 CFM from a 60 mm wide ionic device). This means we are spending almost half the available pressure head just pulling the air under the system – and at that point it hasn’t even entered the chassis yet!

This is the first post in a blog series where we’ll explore innovative alternatives to bottom venting that can reduce overall system impedance for ionic flow notebook designs. Over the coming weeks, we’ll dig into top surface inlets, side inlets, keyboard inlets, and rear-edge inlets, examining how each can more effectively bring fresh air into the system more easily and significantly reduce overall impedance. The goal: maximum cooling capability without compromising on industrial design.

In the next blog, we’ll take a closer look at top inlets (C-cover inlets), one of the most promising and underutilized strategies in thin-and-light notebook design. Follow us on LinkedIn to keep up with the series.
